The product description

The Y series motor is an improved product of the Y series motor. The product performance is in line with the international IEC standard. It has a novel structure, a generous and beautiful appearance, low vibration and low noise.

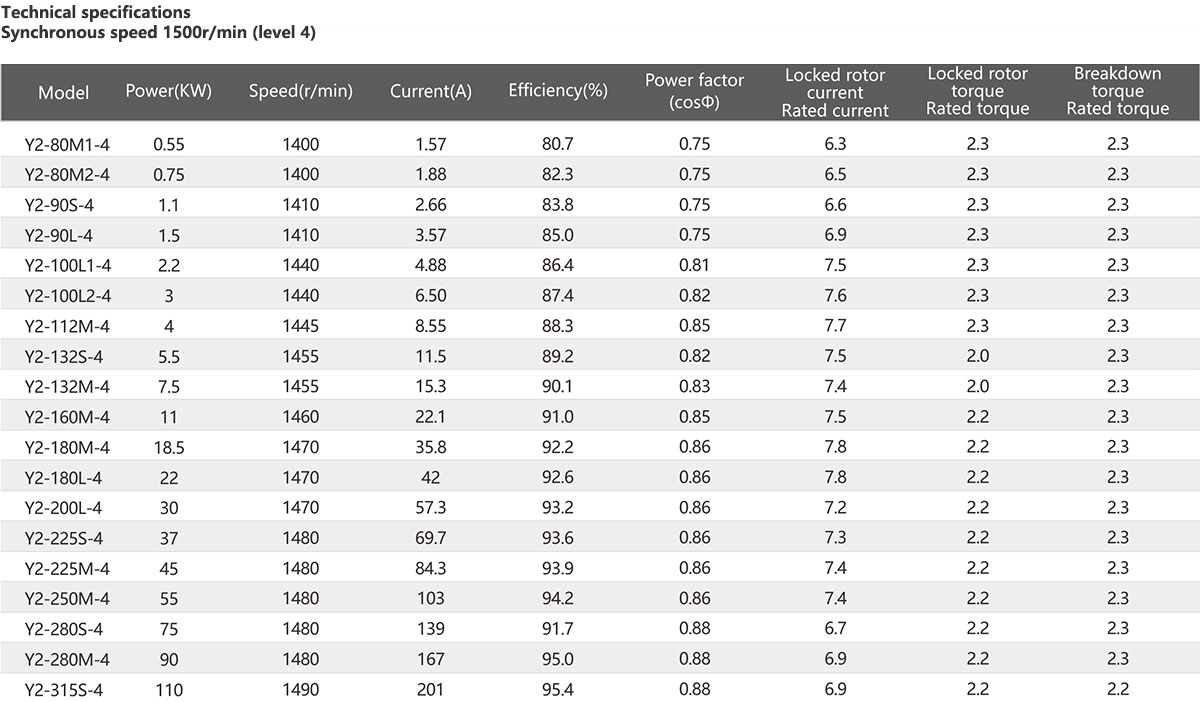

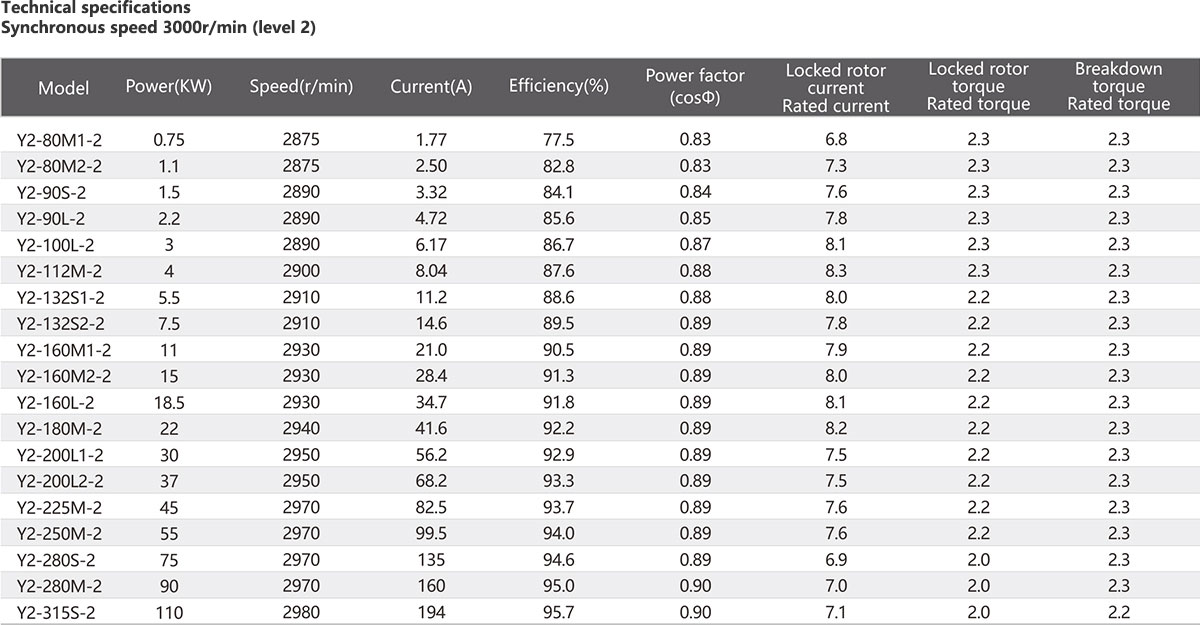

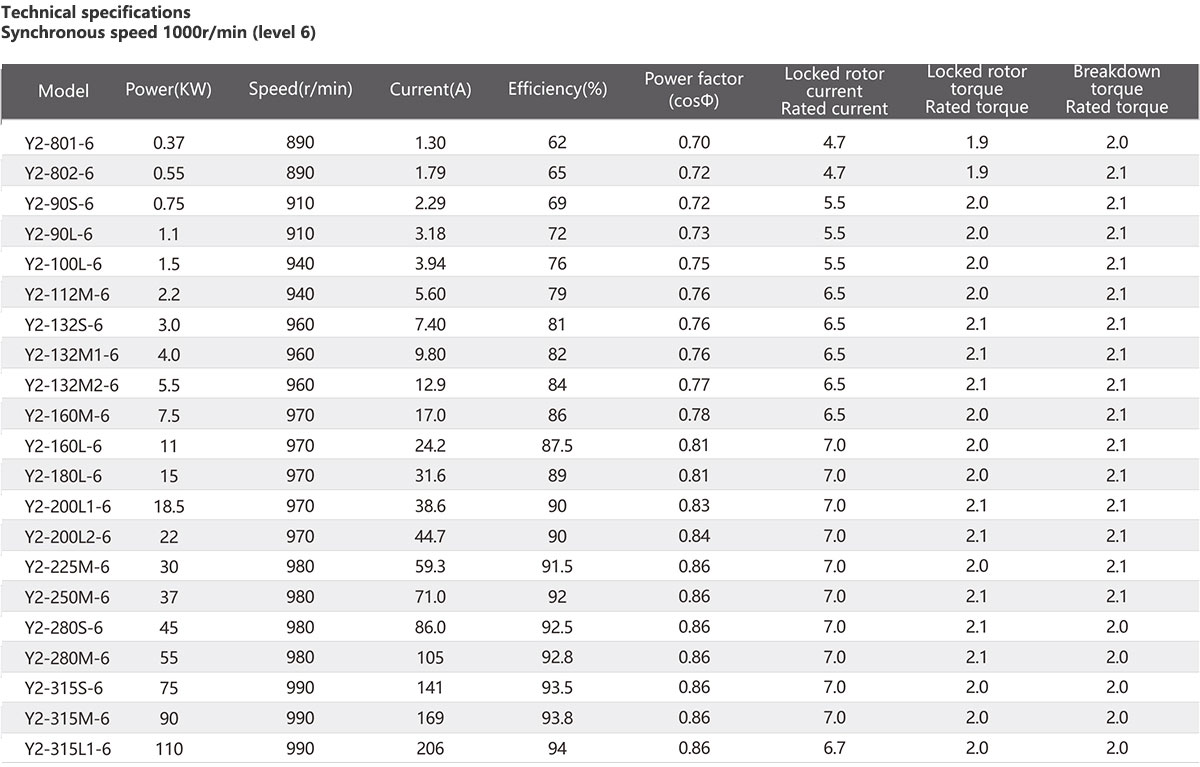

Product related parameters

Base center height: 63-315mm
Power range: 0.37-110kw
Rated voltage: 380V
Rated frequency: 50Hz (60Hz)
Protection level: IP54 (or IP55)
Insulation class: Class F
Work system: S1
Installation structure type:
B3 (The base has feet, and the end cover has no flange)
B35 (The base has feet, and the end cover has no flange)
B5 (The base has feet, and the end cover has no flange)
