The product description

Y series motors are designed and manufactured according to relevant international standards, combined with international standards, and are used for machinery and equipment without special requirements, such as various machine tools, industrial machinery, agricultural machinery, food machinery, fans, water pumps, air compressors, mixers, reducers and construction Industry and so on.

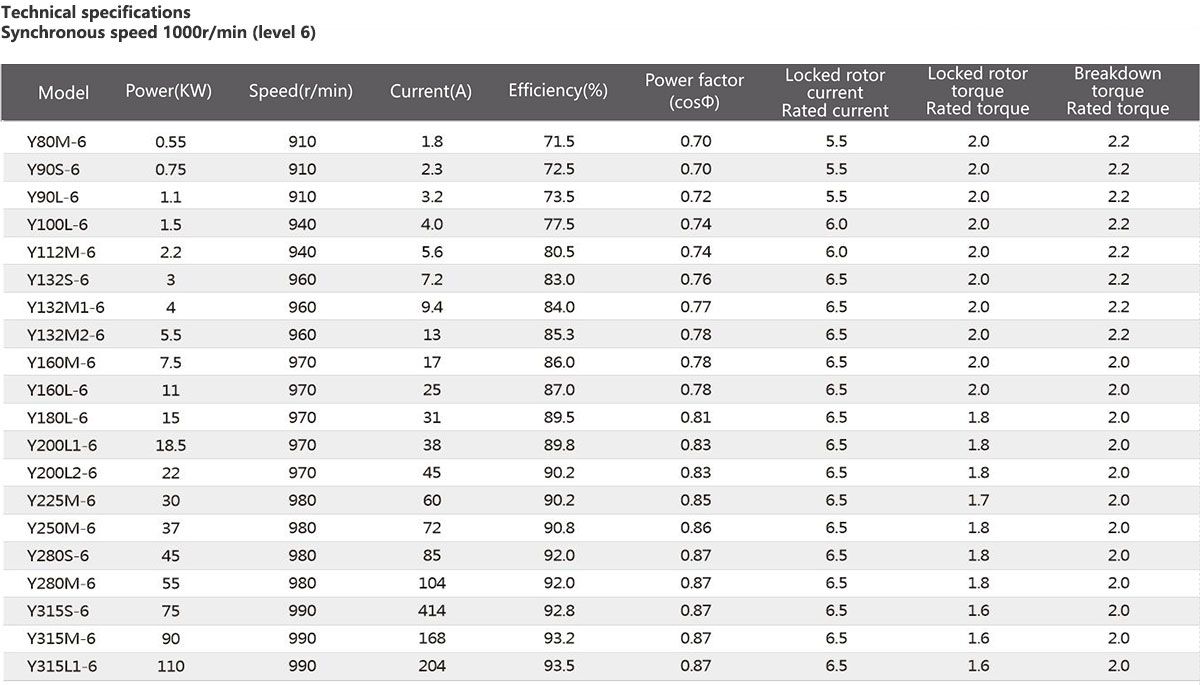

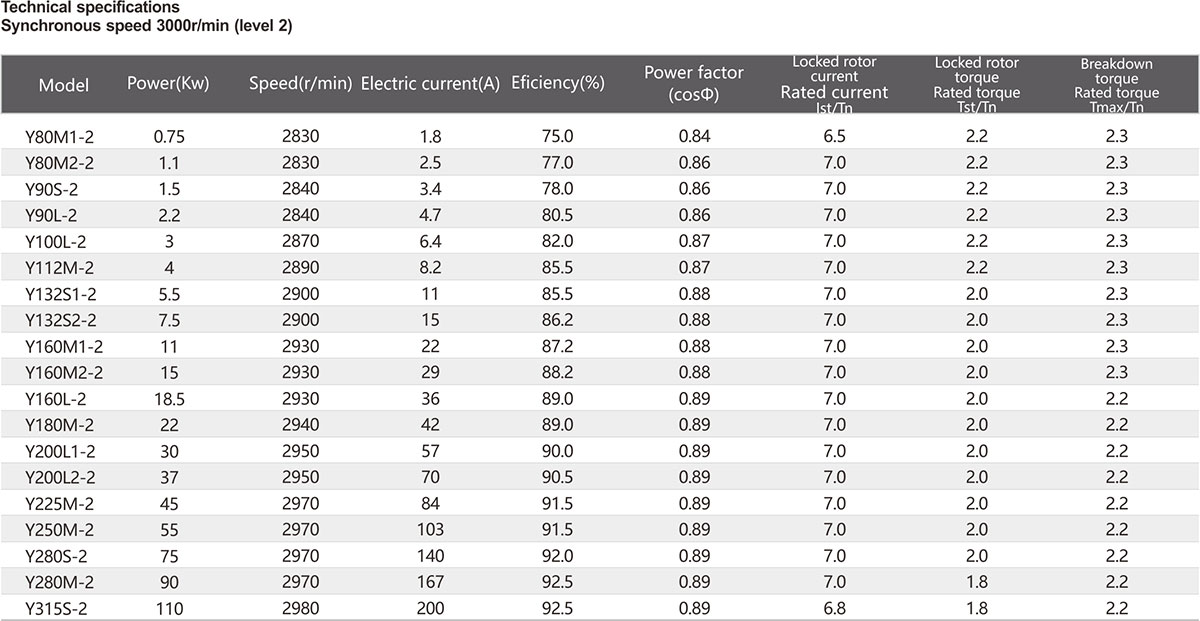

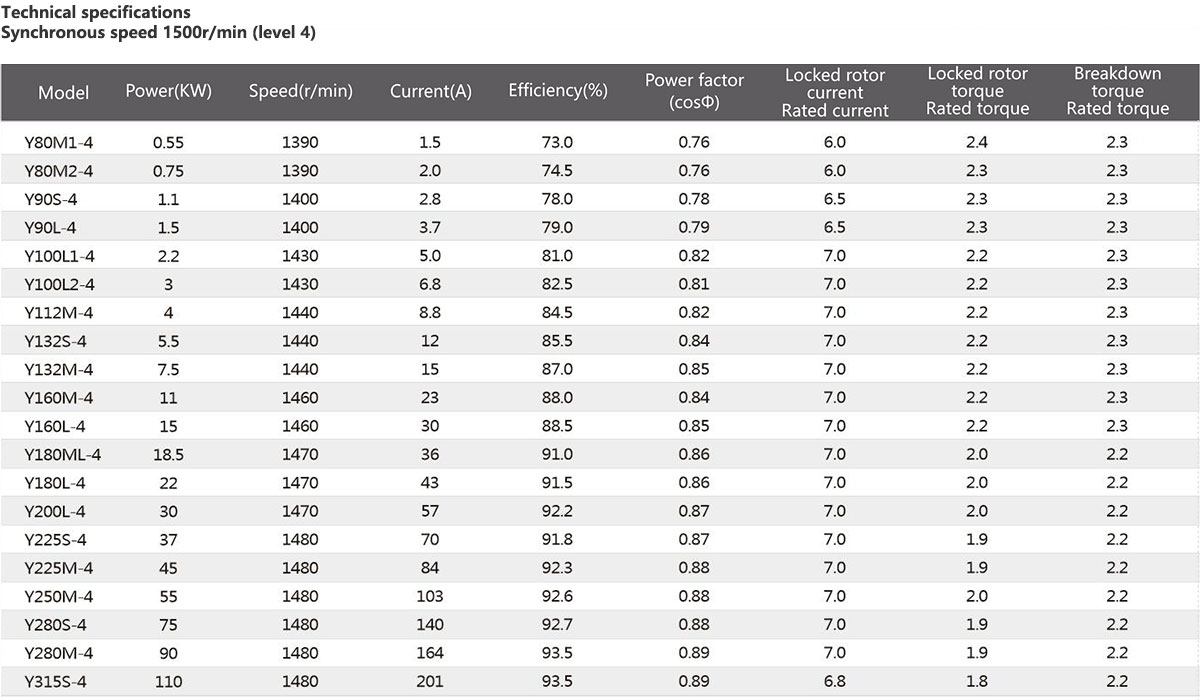

Product related parameters

Base center height: 80-315mm
Power range: 0.55-110kw
Rated voltage: 380V
Rated frequency: 50Hz (60Hz)
Protection level: IP44 (or IP54)
Insulation class: Class B
Work system: S1
Installation structure type:
B3 (The base has feet, and the end cover has no flange)
B35 (The base has feet, and the end cover has no flange)
B5 (The base has feet, and the end cover has no flange)
